📺 Display & Design
-

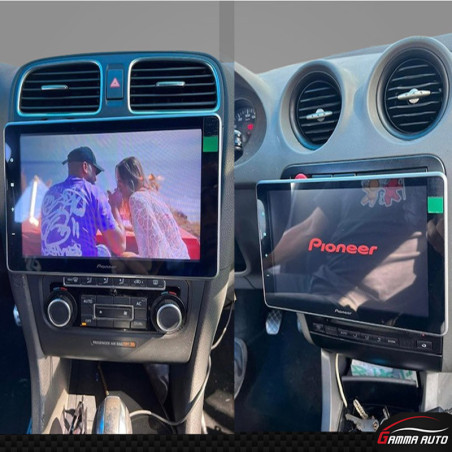

9″ WSVGA (800×480) capacitive flat touchscreen in a floating-panel style atop a universal 2‑DIN chassis—adjustable angle/height Sleek mechafree (no disc drive) design
📱 Smartphone Mirroring & Control
-
Wired mirroring via WebLink® Cast for iOS and Android
-
Direct Bluetooth control of select iPhone and Android apps
📶 Wireless Connectivity
-
Built-in Bluetooth® (AVRCP 1.6) for hands‑free calling and music streaming
-
Rear USB port (1.5 A Quick Charge) for media playback and charging pioneer-
-
Rear AUX input and video input/output
🎛️ Audio Features
-
4×50 W MOSFET amplifier built in
-
13‑band graphic EQ, high-pass/low-pass filters, subwoofer control, and “Bass Boost”
-
3 × 2 V RCA pre‑outs (front, rear, subwoofer)
-
Plays WMA, MP3, WAV, AAC, FLAC, plus Full‑HD video (H.264/MP4/WMV) via USB
📻 Radio & Camera Support
-
AM/FM tuner with RDS, 24 station presets
-
Backup camera input ready (parking guides)
🧩 Physical Specs
-
Dimensions: approx. 178 × 100 × 110 mm (W×H×D)
-
Universal 2‑DIN chassis, floating screen mount
🔧 Summary
Feature | DMH‑AF555BT |
---|---|
Screen | 9″ capacitive floating touchscreen |
Smartphone mirroring | WebLink® Cast (wired) |
Bluetooth | Hands‑free & streaming |
USB | Rear port with full‑HD playback + 1.5 A charging |
Audio tuning | 13‑band EQ + filters + Bass Boost + 4×50 W amp |
Outputs | 3 RCA pre‑outs |
Camera | Backup input with parking guide |
Media support | Audio & Full‑HD video playback |
Installation | 2‑DIN universal chassis |
✅ Ideal For
-
Drivers seeking a large 9″ display in a standard 2‑DIN fit.
-
Users wanting smartphone mirroring through WebLink Cast.
-
Audiophiles who want rich sound tuning and powerful onboard amplification.
-
Those needing backup camera support and flexible installation.
